Compressor Control System Guide: Sequencing, Monitoring, and VSD Logic

Quick answer: A compressor control system keeps pressure inside an approved band while minimising unloaded running, unnecessary starts and conflicts between machines. Local controllers protect and regulate one compressor; central controllers coordinate a station; remote monitoring provides visibility. Control design must follow the measured demand profile and exact machine capabilities.

Three Control Layers

Layer	Primary job	Typical functions
Local controller	Protect and regulate one machine	Load/unload, VSD speed, alarms, starts, service history
Central controller	Coordinate the station	Sequencing, setpoint band, base/trim selection, rotation
Remote monitoring	Provide visibility and workflow	Trends, notifications, reports and service planning

Do not confuse monitoring with control. A cloud dashboard may show status without issuing operational commands. Likewise, a local controller may be fully capable of safe operation without optimising a multi-compressor room. Define the authority and failure mode of each layer.

Pressure Band and Sequencing

Multiple independent pressure switches often create a staircase of setpoints. This can leave several machines unloaded, raise average plant pressure and cause machines to fight. A central controller should select the smallest efficient combination that meets demand, rotate duty where appropriate and keep pressure inside a narrow approved band.

Receiver volume and distribution pressure loss affect stability. Before narrowing setpoints, correct restrictions and verify that critical users still receive minimum pressure. The air-compressor sizing guide explains the relationship between demand, pressure and capacity.

VSD Control Is Not Unlimited

A VSD machine follows demand only inside its approved speed and pressure range. Below minimum efficient speed it may unload or stop; above maximum it cannot create more flow. Central logic should use the VSD as trim while efficient fixed-speed machines carry stable base load where the measured profile supports that arrangement.

The variable-speed versus fixed-speed guide covers the energy decision. Controllers should be configured from model-specific performance and start limits, not a generic idea that VSD must always run first.

Atlas Copco Elektronikon and SMARTLINK

Atlas Copco’s current controls and connectivity pages describe Elektronikon functions such as remote monitoring capability, operating schedules, local network connection, multiple-compressor sequencing and service history/planning, depending on model and option. SMARTLINK provides connectivity and monitoring services. Confirm the exact controller level and licences in the quotation.

YS Industry supports the Atlas Copco complete-machine range and Ingersoll Rand complete machines as control platforms within the selected station architecture. A controller should not be marketed as an isolated spare without compatibility checks.

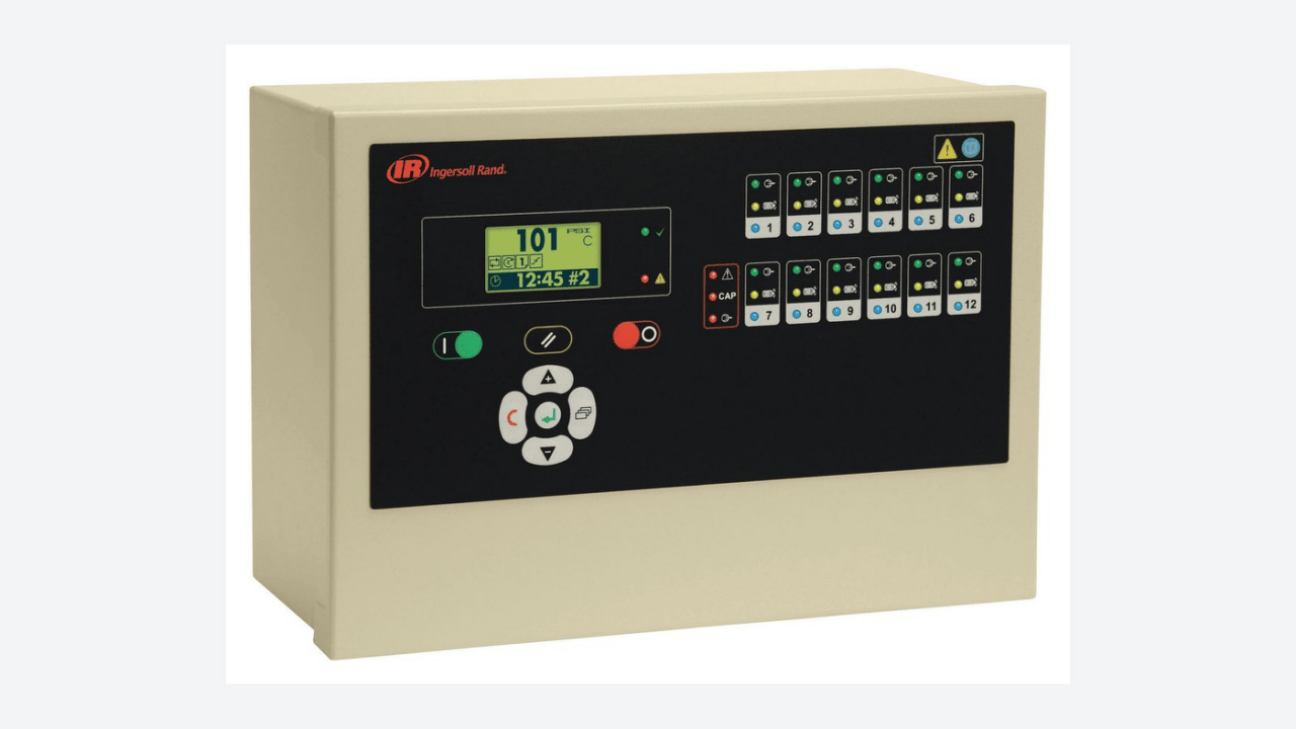

Ingersoll Rand X-Series and Xe Control Platforms

“Getting Atlas Copco & Ingersoll Rand” means YS Industry supports and recommends both brands for complete-machine projects. Ingersoll Rand’s Xe family and X-Series automation are valid references for rotary-screw control, monitoring and sequencing. Match the controller to the selected machine and do not claim cross-brand compatibility without documented interfaces.

For mixed-brand rooms, define hardwired, fieldbus or supervisory interfaces, data ownership, alarm routing and what happens when communications fail. Safe local protection must remain effective even if central or remote connectivity is unavailable.

Monitoring, Alarm Management and Commissioning

• Trend pressure, flow, power, loaded/unloaded state and temperatures
• Prioritise actionable alarms and document escalation
• Synchronise clocks and preserve event history
• Test loss of communication and controller failover
• Verify setpoints under peak and minimum demand
• Train operators on manual and maintenance modes

Remote access should follow the customer’s cybersecurity and change-management rules. Record controller backups and final setpoints. The maintenance checklist should include sensor plausibility, wiring, calibration and alarm review.

Provide machine list, controllers, network constraints, demand data, required integrations and control narrative through the contact page.

Frequently Asked Questions

What is the difference between a local and central controller?

A local controller protects and regulates one machine; a central controller sequences several machines as one station.

Does remote monitoring control the compressor?

Not always. Monitoring, notification and command authority depend on the exact platform, licences and project configuration.

Why do compressors fight each other?

Overlapping or poorly staged setpoints, inadequate receiver volume, bad sensors and uncoordinated local controls are common causes.

Should the VSD machine always be trim?

Often, but not by rule. Use measured demand and model-specific efficiency and operating limits.

Can Atlas Copco and Ingersoll Rand be centrally controlled together?

Possibly through documented interfaces or supervisory systems, but compatibility and safe failure modes must be engineered for the exact controllers.

Conclusion

Select the complete compressor from verified duty data and the exact current model specification. YS Industry supplies and recommends both Atlas Copco and Ingersoll Rand complete machines. Choose between them by verified flow and pressure, duty cycle, configuration, availability, service support and customer requirements. Accessories and service items are matched to the selected machine rather than promoted ahead of it.
